产品参数
processor
D2000， Equipped with 8 FTC663 processor cores, with a main frequency of 2.0~2.3GHz
Memory
Standard 8GB SODIMM DDR4, supporting up to 32GB
Hard disk
Standard 256GB M.2 NVME SSD, supporting up to 4T
display
10.1-inch LED high-definition LCD display screen
Resolution 1920× one thousand and two hundred
Graphics card
integrated graphics
Touch Screen
Multi touch capacitive touch screen

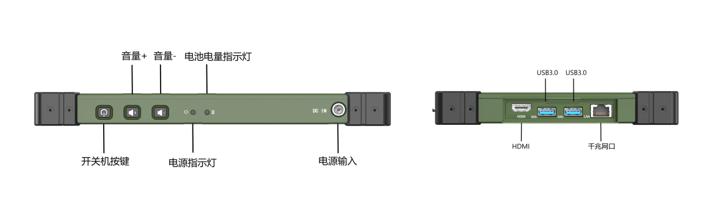

I/O interface
USB3.0 TYPE A*2
Gigabit Ethernet port RJ45 * 1
HDMI TYPE A*1
DC IN power input aviation plug interface * 1
lithium battery
Standard 50Wh intelligent lithium battery
operating system
Support domestic Galaxy Kirin operating system
key
Power on/off button * 1; Volume keys * 2
extend
mini PCIe *1
Sound System
Monaural speaker
power supply
DC 19V power supply, equipped with AC 220V~DC19V adapter
pilot lamp
Battery level indicator light * 1; Power indicator light * 1
structure
size

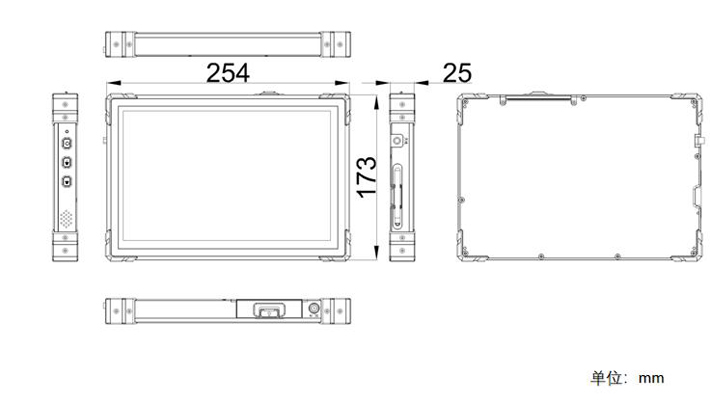

254± 2 mm× 173± 1mm× 25± 1mm (W× D× H) excluding local protrusions such as handles and footrests
weight
About 1.3kg (excluding adapter)
colour
Military vehicle green GY06
material
Magnesium aluminum alloy
Environmental adaptability
operation temperature
-20℃～+55℃；- 40 ℃~+55 ℃ (optional, including lithium battery)
Storage temperature
-40℃～+70℃
low pressure
Meet the altitude requirement of 5000m in GJB150A-2009
vibrate
Meet the relevant requirements in GJB367A-2001/GJB150A-2009
impact
Meet the relevant requirements in GJB367A-2001/GJB150A-2009
protection grade
Meets IP54 (optional IP65)
hot and humid
Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional)
mould
Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional)
Salt mist
Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional)
electromagnetic compatibility
Fully meet the requirements of CE102, CS101, CS114, CS115, CS116, RE102, and RS103 (optional) in GJB151B-2013 "Electromagnetic Emission and Sensitivity Requirements for Military Equipment and Subsystems"
Ordering Information
name
Model configuration
Reinforced flat plate
FRT10-D2000 D2000 CPU/8G DDR4/256G SSD
network encryption
WAPI module, external antenna (optional)
Wrist strap
Portable wristband on the back of the device (optional)
Touch Pen
Capacitive touch pen (optional)
packing box
Military backpack (optional)
Trolley bag (optional)
Aluminum alloy box with pull rod, supplementary size information (optional)
