SRK-1100/1200/Edge Controller
Product Features:< br/>
1. Six core Intel ® xeon ®/ CoRE ™ I7/i5/i3 (Coffee Lake-S) processor, equipped with workstation grade Intel ® C246 system chip

2. VGA, DVI-D, and 2 DisplayPort display interfaces, supporting up to 4K resolution

3. 3 SIM card slots, supporting WiFi/4G/3G/LTE/GPRS/UMTS

4. 6 USB 3.1, 4 RS-232/422/485 serial ports

5. 6V to 36V DC input, 80V surge protection

6. Fanless design, supporting operating temperatures from -40 ° C to 75 ° C

7. 6 independent Gigabit Ethernet ports, including 4 M12 interfaces supporting IEEE 802.3at PoE+

8. 1 PCIe/PCI slot, 32 channel isolation DIO

9. Two 2.5-inch hard drive extraction boxes, two M.2 slots, and one CFast card slot

10. 2 Mini PCIe/mSATA slots, 1 M.2 expansion interface

11. Supports up to 200W power supply in PCI/PCIe slots

12. Intelligent transportation factory automation

13. Support power delay on/off setting (in car mode)
相关下载
产品参数
PRODUCT MODEL
SRK-1100/1200
system
CPU
Six core Intel® Zhiqiang®/ Core&Trade; I7/i5/i3 (Coffee Lake-S) processor
Channel isolation DIO
SRK-1200 : 32 channel isolated DIO: 16 channel digital surge protection with maximum instantaneous voltage of 80V/1ms input, 16 channel digital output

SRK-1100 : 16 GPIO
system memory
2 DDR4 2666MHz SO-DIMM, supporting up to 32GB (ECC/Non ECC)
extend
Two Mini PCIe full cards can support PCIe

1 PCIe/PCI slot

1 M.2 slot (Key ID: E)

2 SUMIT slots (optional)
GPU& Graphics card
1 VGA: maximum resolution 1920 x 1200 @ 60Hz

1 DVI-D: maximum resolution 1920 x 1200 @ 60Hz

2 DisplayPorts: Maximum resolution 4096 x 2304 @ 60Hz
audio
1 microphone input, 1 audio output
Ethernet
LAN 1 Intel® I219LM Ethernet controller, supports iAMT 11.0

LAN 2 Intel® I210 Ethernet Controller
storage
1 CFast card slot, Push-in/Push-out Ejector

2 external 2.5-inch hard drive extraction boxes
M.2
1 M.2 Key M slot; 1 M.2 Key B slot
USB interface
6 external USB 3.1 ports; 1 internal USB 2.0
Serial port interface
4 RS-232/422/485 serial ports (ESD 8KV)
LED light signal
Power supply, hard drive, wireless network PoE
Power requirements
6V to 36V DC input
Channel isolation DIO
SRK-1200 : 32 channel isolated DIO: 16 channel digital inputs, 16 channel digital outputs< br />
SRK-1100 : 16 GPIO
operating system
Windows 10、Linux
structure
structure
Aluminum rectangular profile heat dissipation shell, SGCC box body
colour
black
Installation method
Panel installation, rail installation (optional), 2U rack installation (optional)
size
260mm x 215mm x 79mm
net weight
4.5 kg (9.92 lb)
environment
operation temperature
35W TDP CPU : - 40° C to 75 degrees Celsius; C (-40 ° F to 167 ° F); F)

65W TDP CPU : - 40° C to 55 ° C; C (-40 ° F to 131 ° F); F)

80W TDP CPU : - 40° C to 45 degrees Celsius; C (-40 ° F to 113 ° F); F)
storage temperature
-40° C to 85 degrees Celsius; C (-40 ° F to 185 ° F); F)
Storage humidity
10~90%@40° C, No condensation
vibrate
IEC 61373 : 2010

SSD: 5Grms, 5Hz to 500Hz, 3 Axis
impact
IEC 60068-2-27

SSD : 50G @ wallmount,Half-sine,11ms
EMC/Certification
CE/CCC/FCC/ROHS/Quality Management System complies with GB/T19001-2016/IS09001:2015

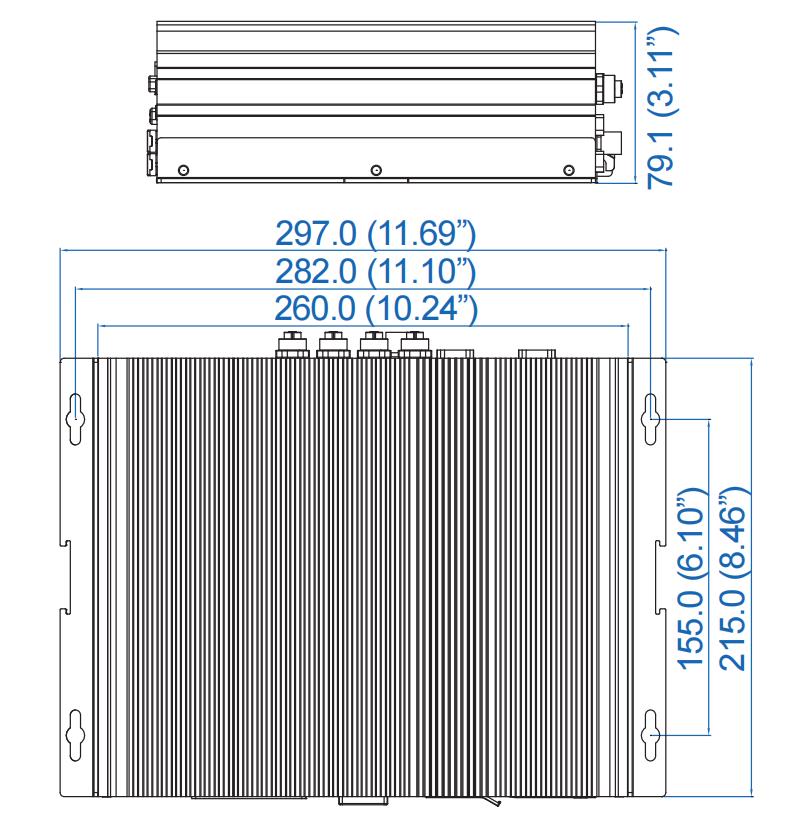

产品尺寸
