产品参数
processor
FT2000/4， Equipped with 4 FTC663 processor cores, with a clock speed of 2.2GHz
D2000， Equipped with 8 FTC663 processor cores, with a main frequency of 2.0GHz
Memory
Standard 8GB SODIMM DDR4, supporting up to 32GB
Hard disk
Standard 256GB M.2 NVME SSD, supporting up to 5T
display
Three 15.6-inch LED high-definition LCD displays
Resolution 1920× 1080, optional visible under sunlight
Graphics card
Standard domestic independent graphics card, optional AMD independent graphics card, with graphics memory not less than 2G
Sound System
Equipped with left and right dual stereo speakers

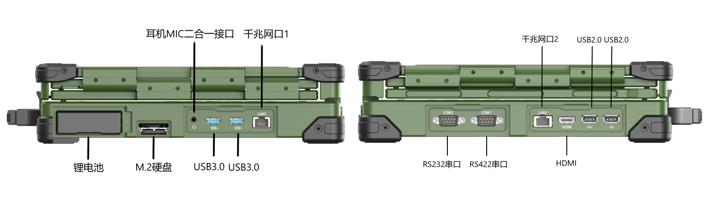

I/O interface
USB3.0 TYPE A *2
USB2.0 TYPE A *2
HDMI A TYPE*1
10/100/1000Mbps adaptive network port RJ45 * 2
RS232 serial port DB9 * 1
RS422 serial port DB9 * 1
Headphone microphone 2-in-1 3.5mm * 1
DC IN power input aviation plug interface * 1
lithium battery
Standard configuration: 90Wh (maximum 140Wh at room temperature) intelligent lithium battery
operating system
Support domestic operating systems such as Galaxy Kirin V10
key
Light on/off button * 1
extend
mini PCIe *1，mSATA *1
Keyboard and Mouse
Waterproof notebook keyboard, touch mouse, split type left and right physical buttons
power supply
DC 19V power supply, equipped with AC 220V~DC19V adapter
Localization rate
Not less than 98%, optional 100% localization rate
pilot lamp
Power indicator light * 1
Hard disk indicator light * 1
Keyboard case indicator light * 1
Number key indicator light * 1
Battery level indicator light * 1
structure
size

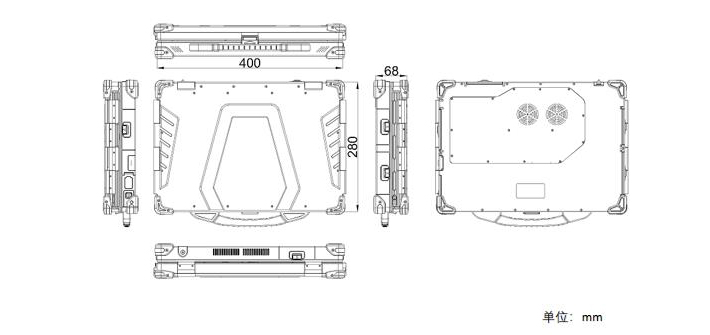

400± 2 mm× 280± 1mm× 68± 1mm (W× D× H) excluding local protrusions such as handles and footrests
weight
About 8.0kg (excluding adapter)
colour
Military vehicle green GY06
material
Magnesium aluminum alloy
Environmental adaptability
operation temperature
-20℃～+55℃；- 40 ℃~+55 ℃ (optional, including lithium battery)
Storage temperature
-40℃～+70℃
low pressure
Meet the altitude requirement of 5000m in GJB150A-2009
vibrate
Meet the relevant requirements in GJB367A-2001/GJB150A-2009
impact
Meet the relevant requirements in GJB367A-2001/GJB150A-2009
protection grade
Meets IP54 (optional IP65)
hot and humid
Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional)
mould
Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional)
Salt mist
Meet the relevant requirements in GJB367A-2001/GJB150A-2009 (optional)
electromagnetic compatibility
Meet the requirements of CE102, CS101, CS114, CS115, CS116, RE102, and RS103 (optional) in GJB151B-2013 "Electromagnetic Emission and Sensitivity Requirements for Military Equipment and Subsystems"
Ordering Information
name
Model configuration
High performance reinforced notebook
SIM560-FT2000 FT2000/4 4-core CPU/8G DDR4/256G SSD
SIM560-D2000 D2000 8-core CPU/8G DDR4/256G SSD
External drive
External USB DVD-RW burning optical drive (optional)
Desktop installation rack
DK-Fix-156 desktop mounting bracket (optional)
packing box
Military backpack (optional)
Trolley bag (optional)
Aluminum alloy box with pull rod, supplementary size information (optional)
