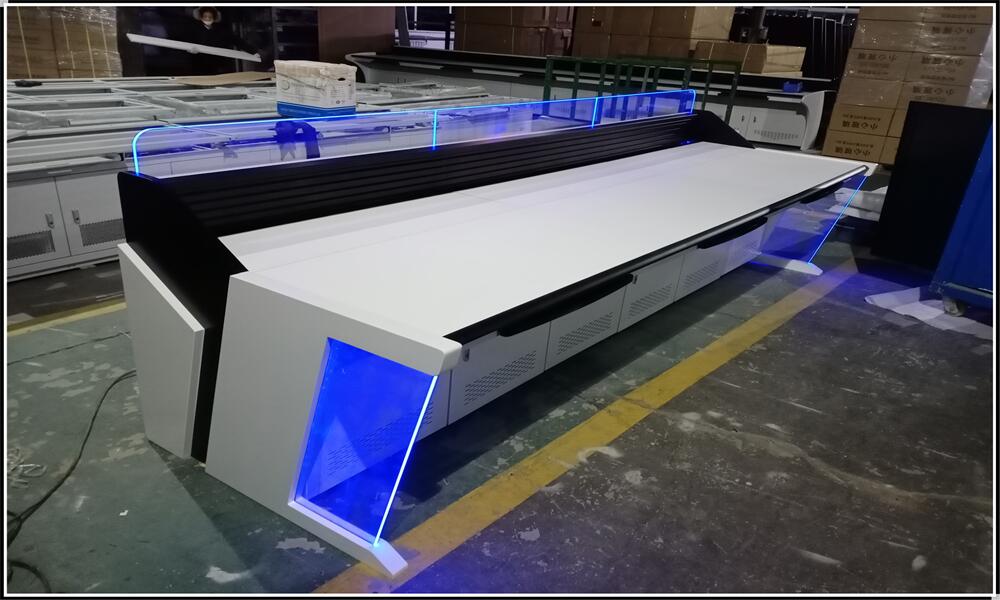

DETU024, Detu Console
Product Features:< br/>
1. The design concept of people-oriented meets the requirements of functionality, ergonomics, and aesthetics in the workstation environment
2. Flexible device layout can bring great convenience to the multi screen display environment, system operation, and other devices used in the intelligent control center< br/>
3. Efficient ventilation system; High level structural performance; Task oriented configuration

4. Main frame: The main frame adopts adjustable horizontal fixed foot support. The structural components are manufactured using precision cast cold-rolled steel to ensure rigidity and squareness. Surface treated with wear-resistant electronic spraying

5. Back wall: The back wall of the main control desk is assembled in a combination of sheet metal and aluminum profiles. The back wall is fixed to the rear beam through sheet metal parts, and a display can be hung on the aluminum profile
6. Panel support bracket: There are support arms on both sides of the lower part of the panel, and arrow slots are opened between the two large panels. The two ends are connected using pull rods, and the overall connection must be smooth and seamless
7. Materials and Processing: Each component in the frame structure should be formed by stamping and bending first-class cold-rolled steel plates, the main frame should be processed by first-class cold-rolled steel plates with a thickness of not less than 2mm, the load-bearing beam components should be processed by first-class cold-rolled steel plates with a thickness of not less than 3mm, and the outer surface should be sprayed with electrostatic plastic powder
8. Main frame front and rear door panels: The front and rear door panels are made of first grade cold-rolled steel plates with a thickness of ≥ 1.2mm, which should have the advantages of damping, light weight, good hand feel, and low noise when opening and closing the door, ensuring that they can be opened smoothly 100000 times. At the same time, the hinge installation method must be quick install, easy to install and disassemble

9. Error requirement: Linear within ± 0.5 mm (including this number); Vertical ± 0.5 ° (including this number)
