产品参数

产品型号		IPC-5200H
系统	CPU	13th Gen Intel® Raptor Lake-S i9/i7/i5/i3/ Pentium® /Celeron® IOTG Series Processor, Max 65W 12th Gen Intel® Alder Lake-S i9/i7/i5/i3/ Pentium® /Celeron® IOTG Series Processor, Max 65W
	芯片组	Intel® H610E Express
	系统内存	2 x 288-pin UDIMMs Dual-channel DDR5 (non-ECC) 4800 MHz Up to 64GB
	扩展网口	1 PCIe x16/1 PCIe x4/5 *PCI
	GPU&显卡	1VGA up to 1920 x 1200 @60Hz 1HDMI up to 4096 x 2160 @24Hz
	音频	Realtek® ALC897 Audio Codec (Co-lay ALC888S)
	以太网	1 x Intel® I219LM GbE LAN PHY 1 x Intel® I225-V 2.5GbE LAN
	存储	4 x SATA 3.0
	PS/2	1 x PS/2 port by Y-cable for keyboard and mouse
	USB接口	2 x USB 3.2 Gen 2 x1 Ports (2 x Rear) 2 x USB 3.2 Gen 1 x1 Ports (2 x Rear) 5 x USB 2.0-Ports (2 x Rear, 3 x Internal with one Vertical Type-A)
	串口接口	6 x COM-Ports for COM1 ~ 6 (2 Rear, 4 x Internal) COM1 RS-232/422/485 0V/5V/12V, Auto-flow Control Supported COM2/3/4/5/6 RS- 232, COM2 0V/5V/12V
	控制开关	1 * Power switch
	电源要求	ATX-Power 24P, 12V-8P
	GPIO	8-bits (4 x GPI; 4 x GPO), 5V
	操作系统	Windows 10 IoT Enterprise 2021 LTSC (64-bit) Windows 11 IoT Enterprise 22H2 (64-bit) Linux Kernel 5.xx, Ubuntu 22.04 LTS Prescan Noted : All driver base on Intel & chip vendor supported
结构	构造	SGCC箱体
	颜色	黑色
	安装方式	上架式安装
	尺寸	483x480x177mm
	净重	15KG
环境	工作温度	-10 ~ 60°C
	存储温度	-20 ~ 80°C
	存储湿度	10 ~ 90%, non-condensing
	振动	5grms/5~500Hz/随机/工作状态(SSD); 1grms/5~500Hz/随机/工作状态(HDD)
	冲击	50g峰值加速度(持续11ms)(SSD); 20g峰值加速度(持续11ms)(HDD）
	EMC/认证	质量管理体系符合GB/T19001-2016/IS09001:2015/CE/CCC/FCC

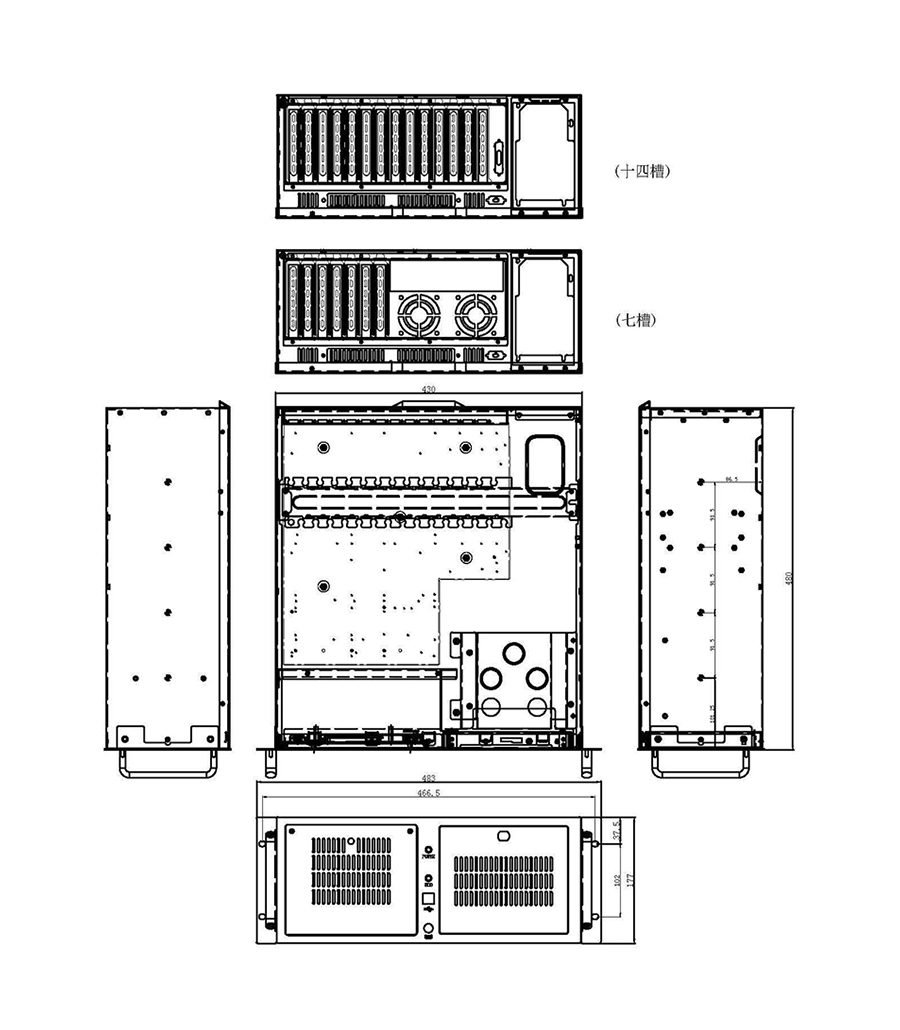

产品尺寸
